Merida e0ne Sixty - 9000 Ebike 2023
Pricing
Finance* from £423.00 per month*subject to status, minimum spend applies
Hover mouse for full example.
- How long will delivery take
- How much does delivery cost
- Price Match

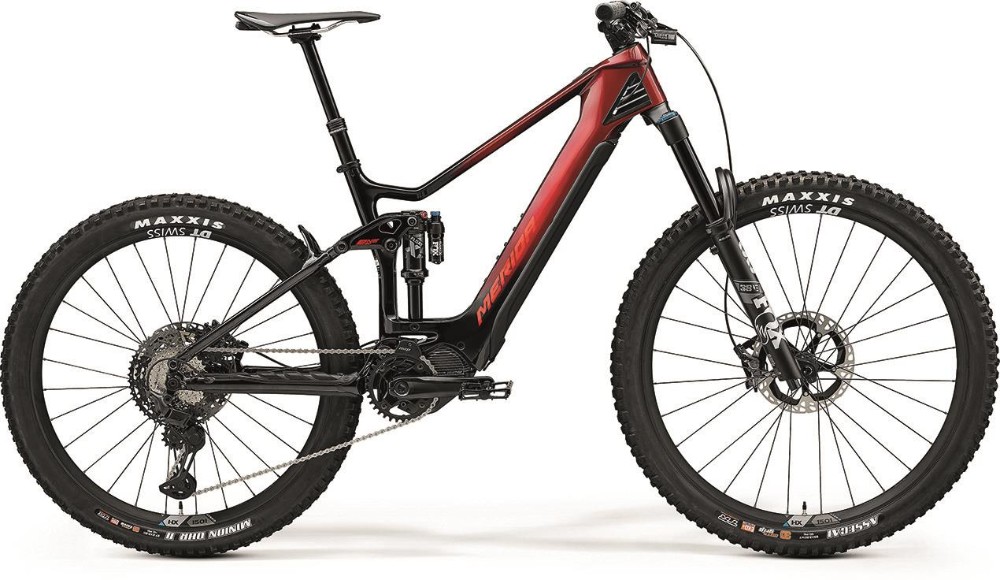

Merida e0ne Sixty 9000 E-Bike
The Merida eOne-Sixty is a hard-hitting enduro-ready ebike which has wowed the press worldwide and become the most decorated, tested and awarded bike in Merida's 50 year history. E-Mountainbike gave it the 'BEST IN TEST' in their 'Best of 2021' eMTB group test, World of MTB also gave it their 'Best of 2021' award and FREERIDE gave the 9000 the almost perfect score of 9.5 out of ten, just to mention a few. The Merida eOne-Sixty is built around compact Shimano Steps motors, the Shimano design ethos is around natural riding, and the physical design of the motor allows Merida designers to create very short chainstays which deliver agile and "regular bike" geometry. To give the e-full suspension bikes precise steering, fantastic 'rolling over obstacles' behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5" tyre and a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction allowing you to feel planted when tackling the most demanding of trails. The carbon frame incorporates an internal block which prevents the bars turning and damaging the frame in the event of a tumble. The signature "Thermo Gate" vents at the top of the down tube allow heat to dissipate and maintain the temperature of the battery. Shimano's e-Tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising.
Bike Specification
FRAME - CFA II Carbon front with 6016 aluminium rear. Integrated battery. Satellite on/off switch, on-bike charging port, thermo gate. Internal cable routing. Tapered head tube, Internal Block. 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8".
MOTOR - Shimano Steps EP801; 85Nm
BATTERY - Shimano EN806; 630Wh internal battery
BATTERY CAPACITY - 630Wh
EBIKE DISPLAY - Shimano SC-EM800
CHARGER - Shimano EC-E8004; 4A Charging current
POWER BUTTON - Shimano satellite system on/off; EW-SW300
MODE SWITCH - Shimano SW-EM800-L
SHOCK - FOX Float DPX2 Elite; platform
FORK - FOX 38 Elite eMTB+ Air; 160mm travel; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.6"
GEARS - 11
SHIFTERS - Shimano XT M8130 and Shimano SL -MT800-IL dropper lever
REAR DERAILLEUR - Shimano XT RDM8130 Shadow+ 11 speed
CHAIN - CNLG500
CHAINSET - Shimano CRE80-B; 34 tooth chainring with Shimano FCEM900; hollow crank 165mm all sizes; MRP 1x chain device
CASSETTE - Shimano LG600; 11-50 teeth; 11 speed
BRAKE LEVER - Shimano XT
FRONT BRAKE - Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-MT900 203mm rotor
REAR BRAKE - Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-EM910 203mm rotor
HANDLEBAR - Merida Expert eTR; 780mm wide; 20mm rise
STEM - Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
HEAD SET - Merida-8152
SADDLE - Merida Expert CC with V-mount including Merida minitool
SEAT POST - Merida Expert TR; 30.9mm diameter; in-line; Drop: 100mm (XS), 125mm (S), 150mm (M), 170mm (L/XL)
WHEEL SIZE - 29" / 27.5"
RIMS - Part of wheelset - DT Swiss Spline HX1501 ONE 30 boost; 30mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves included)
FRONT HUB - Part of wheelset - DT Swiss Spline HX1501 ONE 30 boost; 110x15mm; center lock
REAR HUB - Part of wheelset - DT Swiss Spline HX1501 ONE 30 boost; 148x12mm; center lock; Merida Expert TR axle; including removable lever, 6/4mm allen key
FRONT TYRE - Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip
REAR TYRE - Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR
COLOUR - Red
SEASON - 2023
FRONT LIGHT - Lezyne Power Pro E115, LED front light - 310 Lumens
REAR LIGHT - Lezyne USB Femto STVZO LED rear light
OTHER - Complete with: Shimano Satellite charging port; EW-CP100, mini fenders and lights front and rear
Specifications are subject to change without notice.

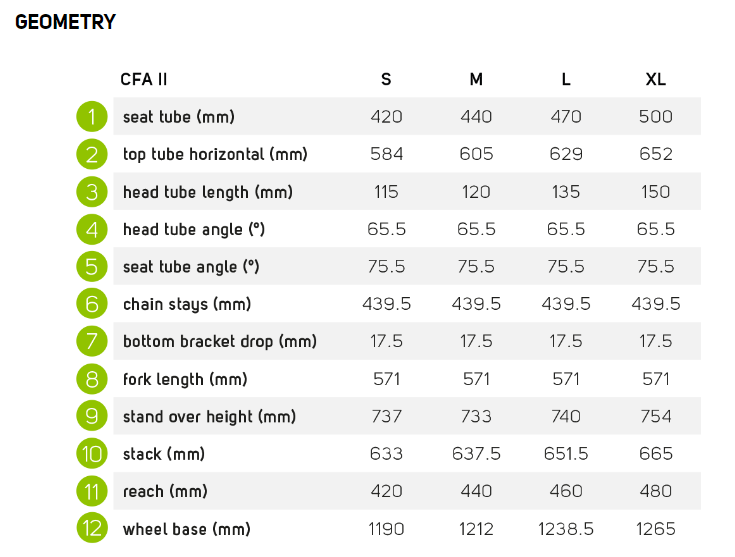

Geometry
| Model Year | 2023 |
|---|---|
| Options | M (Last 1, Allow 3-5 Days For Delivery) Red Available L (Last 1, Allow 3-5 Days For Delivery) Red Available XL (2 Left, Allow 3-5 Days For Delivery) Red Available |
| Wheel Size | 297 |
