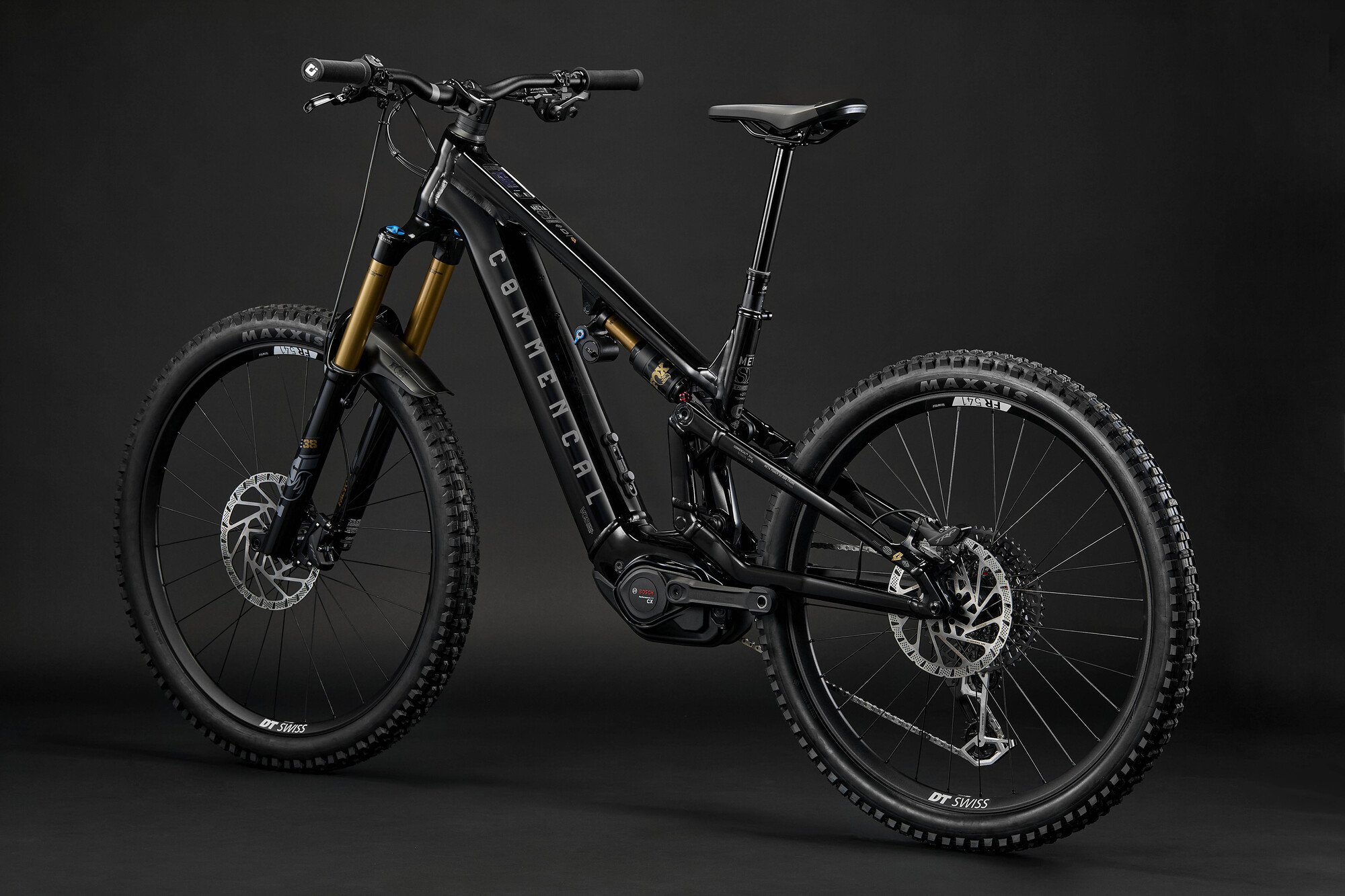

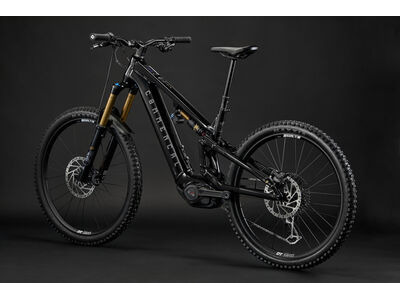

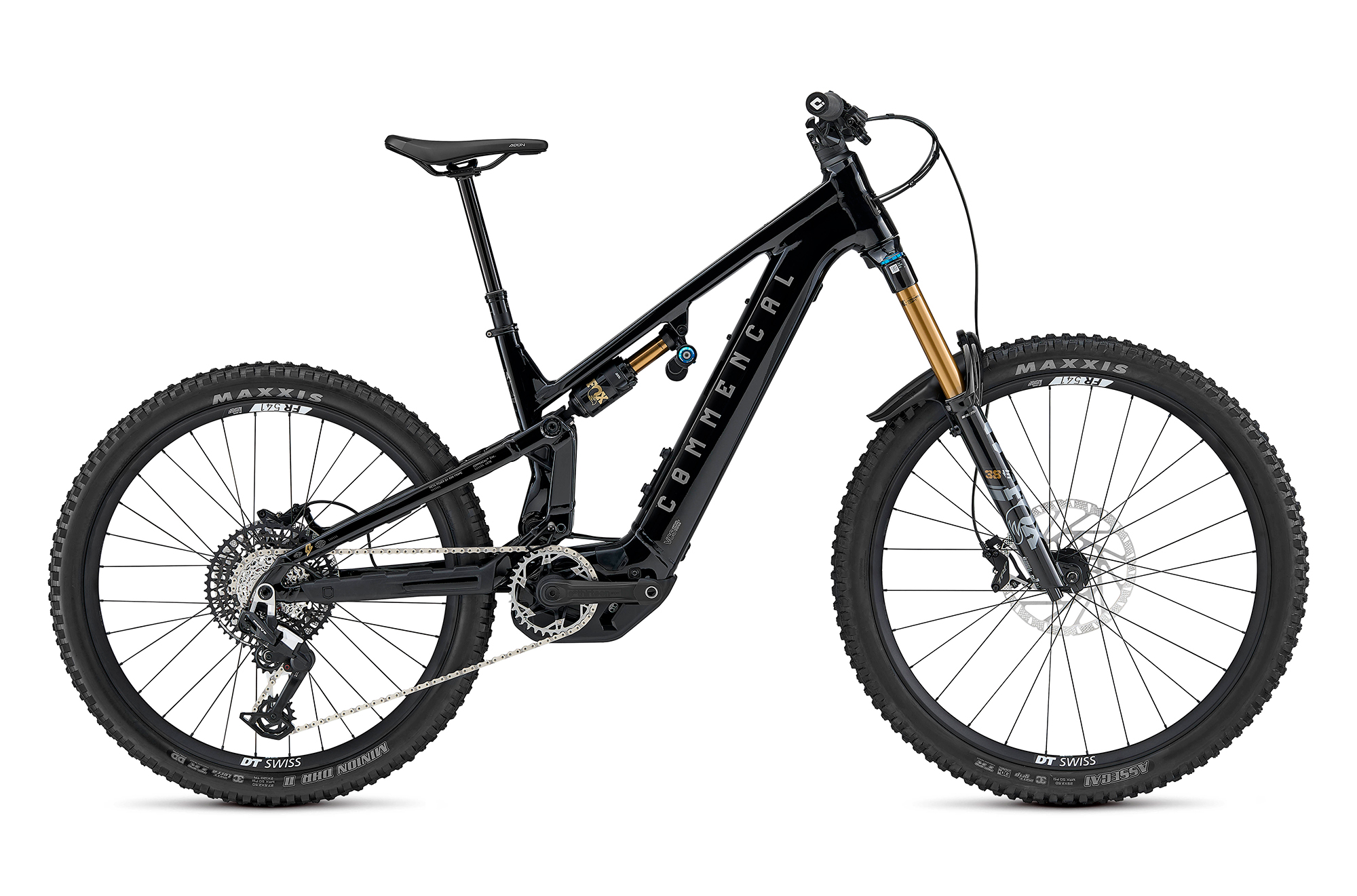

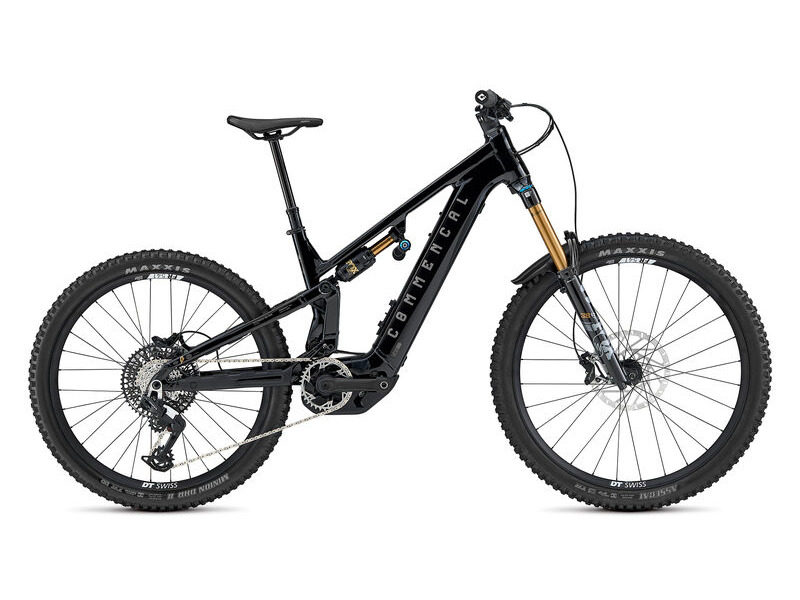

Commencal Metapower SX 800 Signature Pure Black 2026

The META POWER SX 800 is aimed at riders who want to venture ever further afield. Fitted with a BOSCH Performance CX Gen5 motor and an 800Wh battery, it combines power and range. Designed for challenging natural trails, it tackles elevation gain with ease and comfort.


The Signature model is the ideal bike for performing and discovering new trails.

- The Fox 38 fork and Fox Float X2 shock in Factory version offer unmatched support and precision.
- The new Eagle 90 transmission in mechanical T-type is reliable and responsive.
- The rims are DT Swiss FR541, hand-built on 370 Hybrid hubs.
- Braking is provided by TRP DHR EVO PRO. They guarantee power and consistency in all situations.

Frame
META POWER SX BOSCH, 180 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings

Motor
BOSCH Performance Line CX Gen5
100 n.m

Battery
BOSCH Powertube 800
Fully integrated main battery, 800 Wh

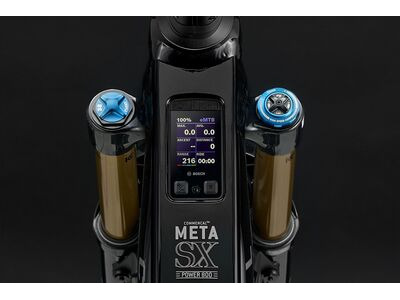

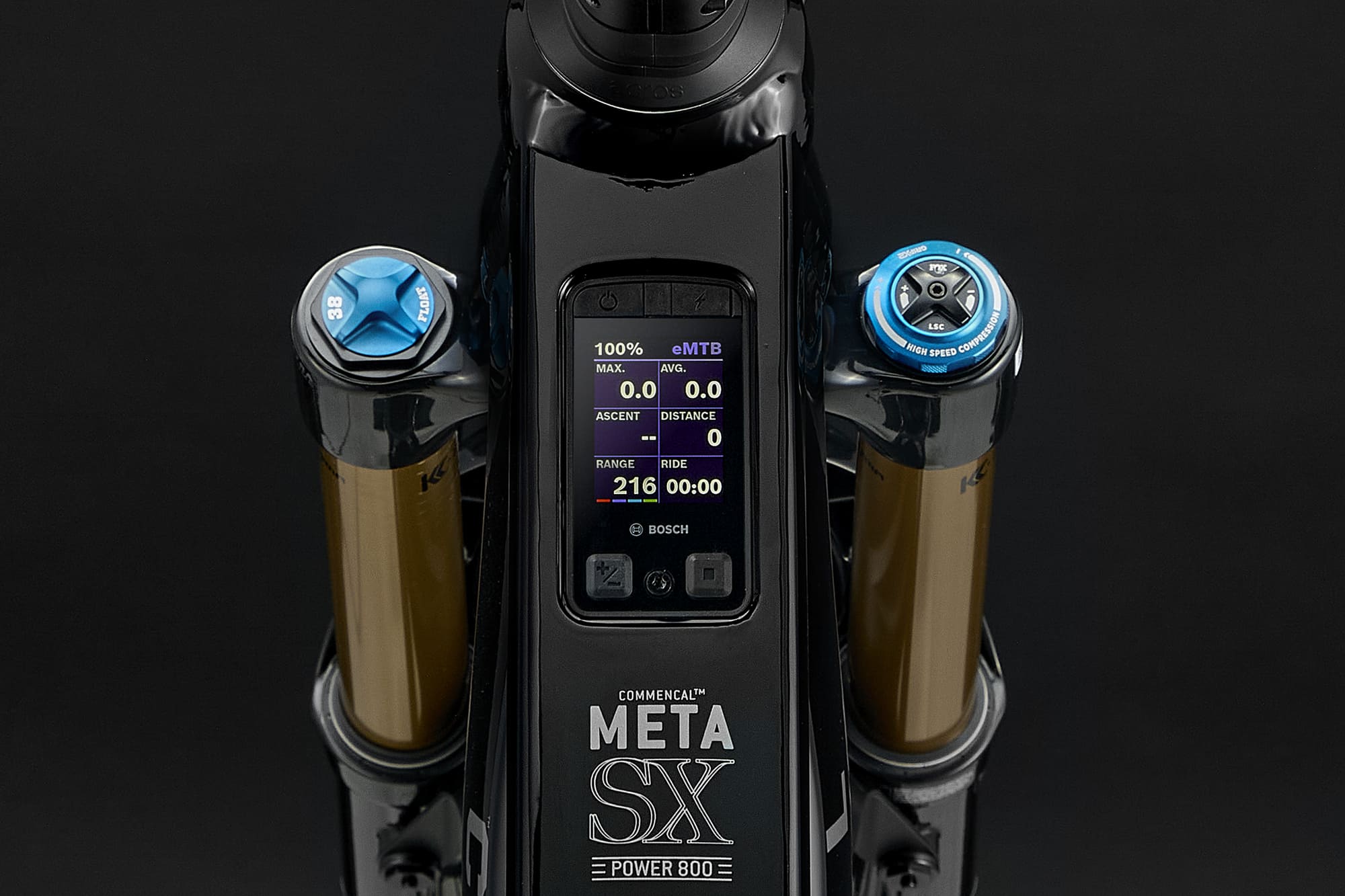

Display
BOSCH System Controller, ON/OFF switch, assist mode level, battery charge level
Switch: BOSCH Mini Remote, mode switch, walk assist, light switch

Shock
FOX Float X2 Factory
230 x 65 mm, 2-postion (open/firm) lever, HSC, LSC, HSR, LSR

Fork
FOX 38 Factory E-Bike, 180 mm
29", Grip X2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset, 3 spacers

Headset
ACROS ZS56/ZS66
Alloy cups, stainless steel & sealed bearings

Stem
RIDE ALPHA 40
40 mm extension, 31.8 mm

Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

Grips
ODI Longneck 2.1
Soft compound, single clamp, black

Brakes
TRP DH-R EVO PRO, 4 pistons, resin pads
Rear rotor: TRP RS05 203 mm - Front rotor: TRP RS05 220 mm
6-bolt, 2.3 mm width

Shifters
SRAM Eagle 90
12s

Chain guide
RIDE ALPHA
32-34t

REAR DERAILLEUR
SRAM Eagle 90
12s

Crankset
E13 Helix Core E*Spec, 155 mm crank arms, Bosch
Chainring: SRAM XX T-Type E-MTB, 34t for Bosch system, direct mount

Chain
SRAM GX T-Type
12s, Flattop

Cassette
SRAM GX T-Type
12s, 10-52t

Rims
DT SWISS FR541
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width

Hubs
Rear: DT SWISS 370 Hybrid - Front: DT SWISS 370
Rear: 28h, sealed bearings, 12 x 148 mm, 24t, SRAM XD - Front: 28h, sealed bearings, 15 x 110 mm

Spokes/nipples
Included with wheelset

Tyres
Rear: MAXXIS Minion DHRII 27.5'' - Front: MAXXIS ASSEGAI 29''
Rear: 27.5x2.50 WT, 3C MaxxTerra, Double Down, TR - Front: 29x2.50 WT, 3C MaxxGrip, New EXO+, TR

Seat post
ONE UP V3
31.6 mm, 150 mm on S, 180 mm on M, 210 mm on L/XL

Saddle
FIZIK Terra Aidon X5
145 mm width, Kium Mobius rails

Weight
25,5 kg / 56.21 lbs
Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

Pedals included
CRANKBROTHERS Stamp 1

Colour
Pure Black
Shiny Finish

Accessories
Down tube protector, chainstay protector, seatstay protector, FIDLOCK base, BOSCH Kiox 400, Pedals CRANKBROTHERS Stamp 1.
Battery charger: BOSCH 4A Charger, Compact size & lightweight

*Please note that bike specs are subject to change without prior notice.
