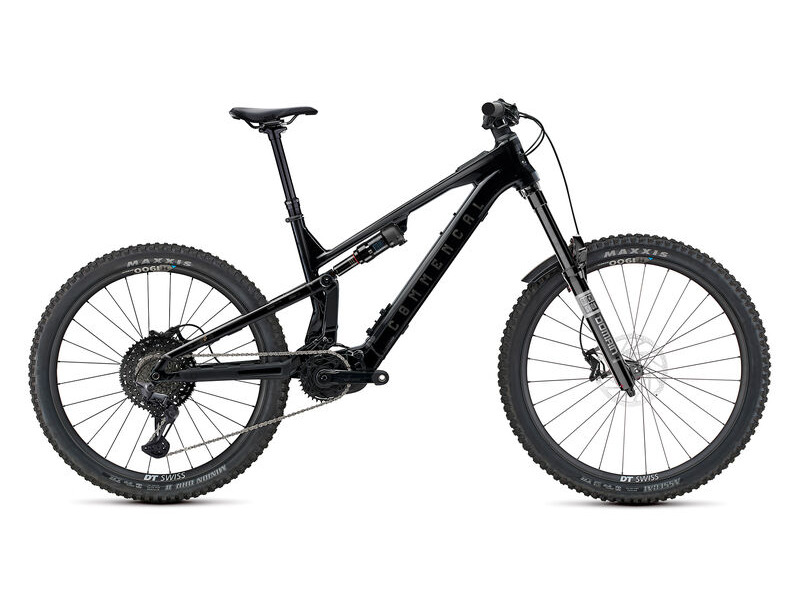

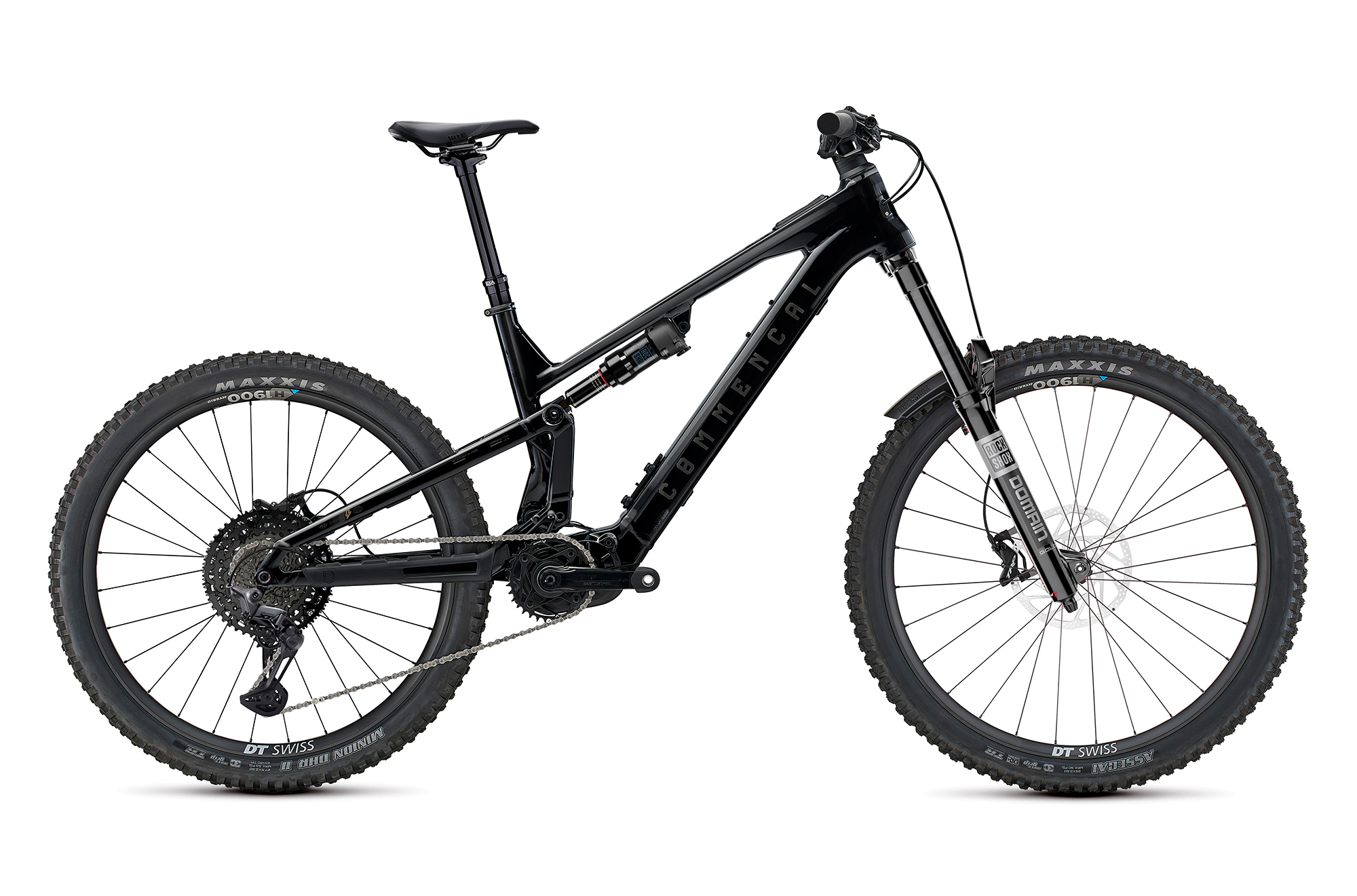

Commencal Meta Power Ride SX Avinox 2026
The META POWER SX AVINOX combines power, liveliness, handling and manoeuvrability. It's designed for those who want long rides with a powerful and torquey motor. Complete with 160mm of travel, the suspension benefits from our Virtual Contact System (VCS) linkage. Low in weight and with a 27.5" rear wheel, this bike is responsive and particularly agile.
With its - ?full black- ? build, the META POWER SX AVINOX RIDE delivers the full performance of the AVINOX system, paired with components selected for their ease of use and outstanding reliability.
- Thanks to its 38mm stanchions, the ROCKSHOX Domain Gold R fork provides precision, stiffness, and a high level of riding comfort. The Deluxe Select rear shock is specifically tuned for this frame, ensuring impeccable suspension performance.
- The SHIMANO LinkGlide drivetrain is reliable and shifting is smooth even under heavy load.
- DT SWISS H1900 wheels are designed especially for e-bikes and are hand-built.- ? Braking is handled by TRP, with powerful, proven calipers com
bined with robust 2.3mm thick rotors.
Frame
META POWER SX AVINOX, 160 mm travel
29"-27.5", Alloy 6066, triple butted tubes, T4, T6. Bolu bearings
Motor
AVINOX
Battery
AVINOX fixed
600Wh on S - 800Wh on M / L / XL
Display
AVINOX BD100
Integrated and colored touchscreen providing a large range of information : speed, ride mode, battery range, charge level, fitness data, elevation gain, altitude and many more. It also features a USB-C port, GPS sensor, barometer, compass, 4G connection and even a theft alarm system.
Shock
ROCKSHOX Deluxe Select
230x60mm, DebonAir+ Linear XL, LSR
Fork
ROCKSHOX Domain Gold R, 170mm travel
29", damper Isolator R, LSR, Boost (15x110mm), 44mm offset
Headset
ACROS ZS56/ZS66
Alloy cups, stainless steel & sealed bearings
Stem
RIDE ALPHA 40
40mm extension, 31.8mm
Handlebar
RIDE ALPHA R27 760 on S - RIDE ALPHA R35 780 on M / L - RIDE ALPHA R35 800 on XL
31.8mm, 760mm width, 27mm rise, Alloy 7050 on S - 31.8mm, 780mm - width, 35mm rise, Alloy 7050 on M / L - 31.8mm, 800mm width, 35mm rise, Alloy 7050 on XL
Grips
RIDE ALPHA Mushroom
Soft compound, single clamp, black
Brakes
TRP DHR EVO, 4 pistons
Rotors: TRP 6-bolt, 220mm/203mm
Shifters
SHIMANO XT LinkGlide
11s
Chain guide
RIDE ALPHA
32-34t
REAR DERAILLEUR
SHIMANO XT LinkGlide
11s
Crankset
E13 HELIX CORE
155 mm crank arms
Chain
SHIMANO Cues LinkGlide
CN-LG500, 11s
Cassette
SHIMANO Cues LinkGlide
CS-LG400, 11s, 11-50t
Rims
DT SWISS H 1900
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width
Hubs
DT SWISS 370 Hybrid
Rear: 28h, sealed bearings, 12 x 148 mm, Hyperglide - Front: 28h, sealed bearings, 15 x 110 mm
Spokes/nipples
DT SWISS Hybrid 1
Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black
Tyres
Rear: MAXXIS Minion DHRII - Front: MAXXIS Assegai
Rear: 27.5x2.50WT, 3C MaxxTerra, EXO+, TR- Front: 29x2.50WT, 3C MaxxTerra, EXO+, TR
Seat post
KS 900i
150mm on S - 170mm on M - 190mm on L/XL
Saddle
WTB Solano Crmo
142x240mm, Medium
Pedals included
CRANKBROTHERS Stamp 1
Colour
PURE BLACK
SHINY FINISH
Accessories
Full RIDEWRAP protective film, motor protector, chain stay protector, seat stay protector, FIDLOCK base, fork fender, CRANKBROTHERS STAMP 1 pedals
With its - ?full black- ? build, the META POWER SX AVINOX RIDE delivers the full performance of the AVINOX system, paired with components selected for their ease of use and outstanding reliability.
- Thanks to its 38mm stanchions, the ROCKSHOX Domain Gold R fork provides precision, stiffness, and a high level of riding comfort. The Deluxe Select rear shock is specifically tuned for this frame, ensuring impeccable suspension performance.
- The SHIMANO LinkGlide drivetrain is reliable and shifting is smooth even under heavy load.
- DT SWISS H1900 wheels are designed especially for e-bikes and are hand-built.- ? Braking is handled by TRP, with powerful, proven calipers com
bined with robust 2.3mm thick rotors.
Frame
META POWER SX AVINOX, 160 mm travel
29"-27.5", Alloy 6066, triple butted tubes, T4, T6. Bolu bearings
Motor
AVINOX
Battery
AVINOX fixed
600Wh on S - 800Wh on M / L / XL
Display
AVINOX BD100
Integrated and colored touchscreen providing a large range of information : speed, ride mode, battery range, charge level, fitness data, elevation gain, altitude and many more. It also features a USB-C port, GPS sensor, barometer, compass, 4G connection and even a theft alarm system.
Shock
ROCKSHOX Deluxe Select
230x60mm, DebonAir+ Linear XL, LSR
Fork
ROCKSHOX Domain Gold R, 170mm travel
29", damper Isolator R, LSR, Boost (15x110mm), 44mm offset
Headset
ACROS ZS56/ZS66
Alloy cups, stainless steel & sealed bearings
Stem
RIDE ALPHA 40
40mm extension, 31.8mm
Handlebar
RIDE ALPHA R27 760 on S - RIDE ALPHA R35 780 on M / L - RIDE ALPHA R35 800 on XL
31.8mm, 760mm width, 27mm rise, Alloy 7050 on S - 31.8mm, 780mm - width, 35mm rise, Alloy 7050 on M / L - 31.8mm, 800mm width, 35mm rise, Alloy 7050 on XL
Grips
RIDE ALPHA Mushroom
Soft compound, single clamp, black
Brakes
TRP DHR EVO, 4 pistons
Rotors: TRP 6-bolt, 220mm/203mm
Shifters
SHIMANO XT LinkGlide
11s
Chain guide
RIDE ALPHA
32-34t
REAR DERAILLEUR
SHIMANO XT LinkGlide
11s
Crankset
E13 HELIX CORE
155 mm crank arms
Chain
SHIMANO Cues LinkGlide
CN-LG500, 11s
Cassette
SHIMANO Cues LinkGlide
CS-LG400, 11s, 11-50t
Rims
DT SWISS H 1900
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width
Hubs
DT SWISS 370 Hybrid
Rear: 28h, sealed bearings, 12 x 148 mm, Hyperglide - Front: 28h, sealed bearings, 15 x 110 mm
Spokes/nipples
DT SWISS Hybrid 1
Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black
Tyres
Rear: MAXXIS Minion DHRII - Front: MAXXIS Assegai
Rear: 27.5x2.50WT, 3C MaxxTerra, EXO+, TR- Front: 29x2.50WT, 3C MaxxTerra, EXO+, TR
Seat post
KS 900i
150mm on S - 170mm on M - 190mm on L/XL
Saddle
WTB Solano Crmo
142x240mm, Medium
Pedals included
CRANKBROTHERS Stamp 1
Colour
PURE BLACK
SHINY FINISH
Accessories
Full RIDEWRAP protective film, motor protector, chain stay protector, seat stay protector, FIDLOCK base, fork fender, CRANKBROTHERS STAMP 1 pedals
| Model Year | 2026 |
|---|---|
| Options | S / Pre order for July Black Available M / Pre order for April Black Available L / Pre order for April Black Available XL / Pre order for July Black Available |
| Wheel Size | 297 |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
