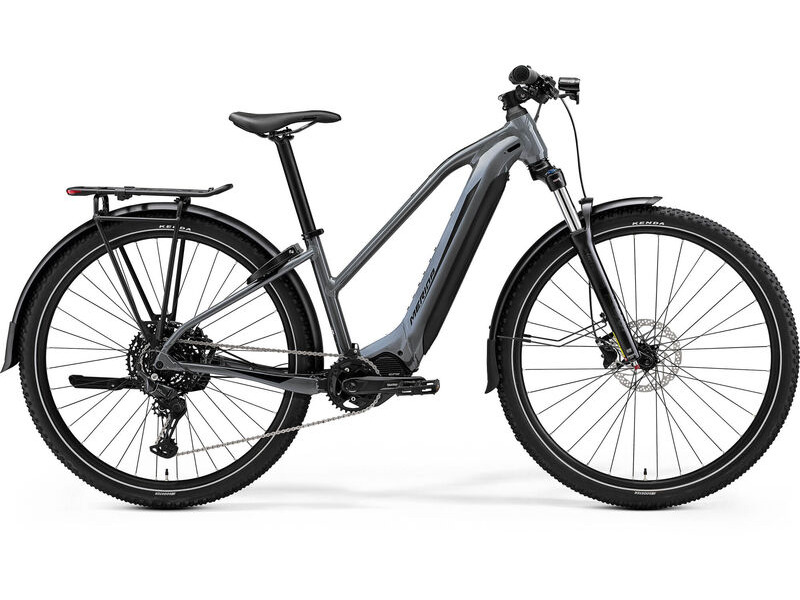

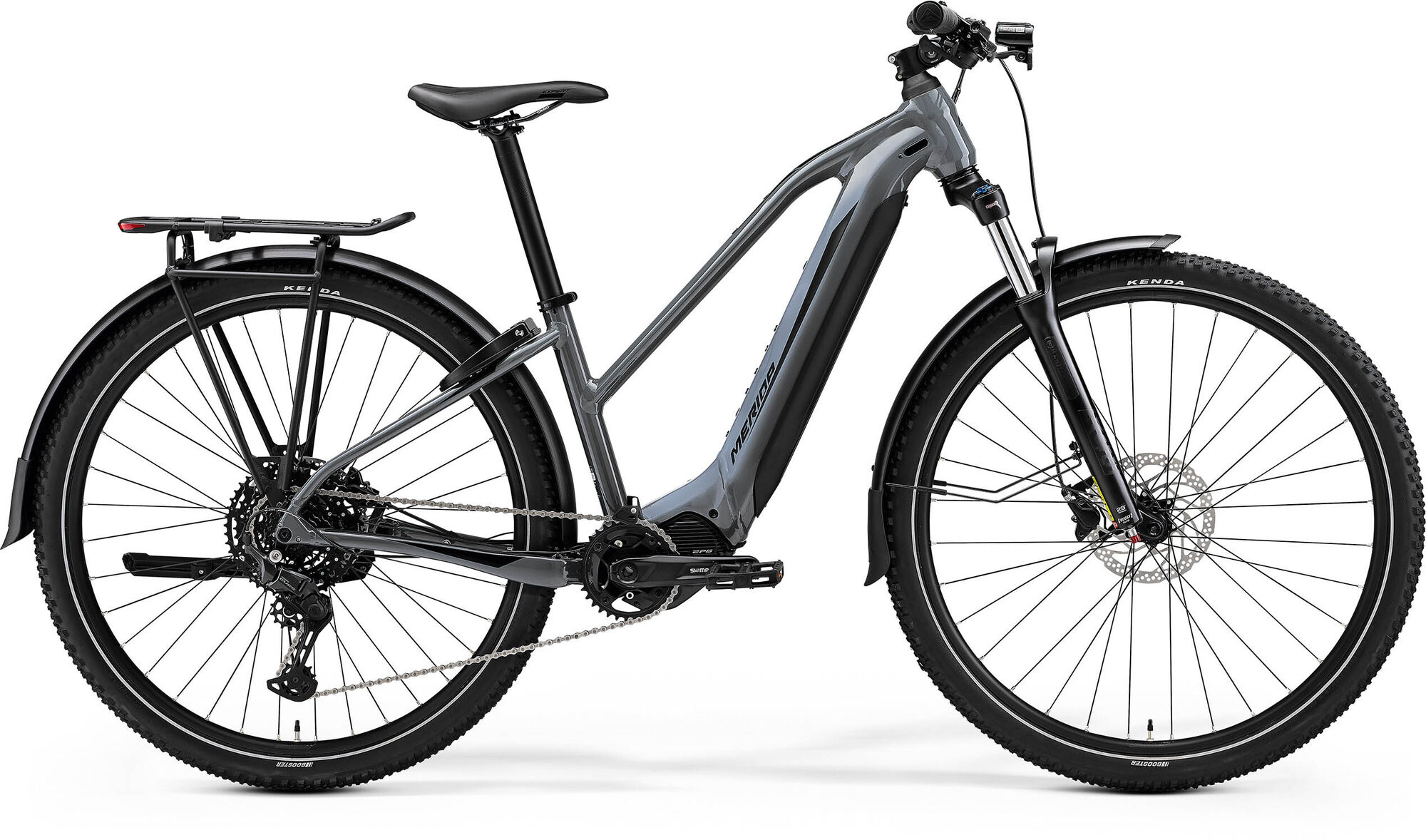

Merida eBig Tour 400 Grey / Black 2024

Versatile hardtail eMTB with 85Nm Shimano Steps EP6 motor and 630Wh battery, Equipped with mudguards and rack for all year practicality. 10 gears, Suntour XCM34 fork and hydraulic disc brakes.

The cycling equivalent of an SUV; stylish and practical. 29 wheels make for effortless cycling. The fast and grippy 2.2 Kenda Booster tyres fit neatly inside the mudguards for year round practicality. The bent top tube provides a really low standover height for easy mounting and dismounting and a more confident ride. Some of the technical features and thinking from the award winning Merida eOne-Sixty make an appearance, including the satellite charging socket, a double compound battery compartment cover and a neat bottle boss system incorporating tidy cable routing. The list of well thought through details include tyres with reflective strips, a rack with an integrated rear light, a Leyzyne front light, an integrated lock and a kick stand.

FRAME
Lite IV - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without

MOTOR
Shimano Steps EP6; 85Nm

BATTERY
Shimano EN806; 630Wh internal battery

BATTERY CAPACITY
630Wh

EBIKE DISPLAY
Shimano SC-EN500

CHARGER
Shimano EC-E6002; 2A Charging current

POWER BUTTON
CAP-045, Merida Power Button

FORK
Suntour XCM34-Boost LOR DS; 100mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.4"

GEARS
10

SHIFTERS
Shimano CUES U6000

REAR DERAILLEUR
Shimano CUES U6000; GS

CHAIN
Shimano LG500

CHAINSET
Shimano CRE70-B; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with Mr. Control CH-E8 mini chainguide

CASSETTE
Shimano LG300; 11-48 teeth; 10 speed

BRAKE LEVER
Shimano MT200

FRONT BRAKE
Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT30 180mm rotor

REAR BRAKE
Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RTEM300 180mm rotor

GRIP
Merida Expert TK

HANDLEBAR
Merida Expert CC; aluminium; 720mm wide; 10mm rise

STEM
Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm all sizes

HEAD SET
Merida-8155 (for steerer 1-1/8"~1.5")

SADDLE
Merida Expert TK; V-mount

SEAT POST
Merida Expert CC; aluminium; 34.9mm diameter; in-line

WHEEL SIZE
29"

RIMS
Merida Comp CC II; 25mm inner rim width; aluminium

SPOKES
Black stainless

FRONT HUB
Shimano TC500-B; 110 x 15mm; 32 spokes; Centerlock

REAR HUB
Shimano TC500-HM-B; 148 x 12mm; 36 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key

FRONT TYRE
Kenda Booster; 29" x 2.2"; wire bead
REAR TYRE
Kenda Booster; 29" x 2.2"; wire bead

COLOUR
Grey/Black

FRONT LIGHT
Lezyne Hecto STVZO E65 front light

REAR LIGHT
Spanninga Commuter Glow XE integrated rear light

OTHER
Complete with: mudguards, kickstand, frame lock and Merida carrier with spring clip and integrated rear light
