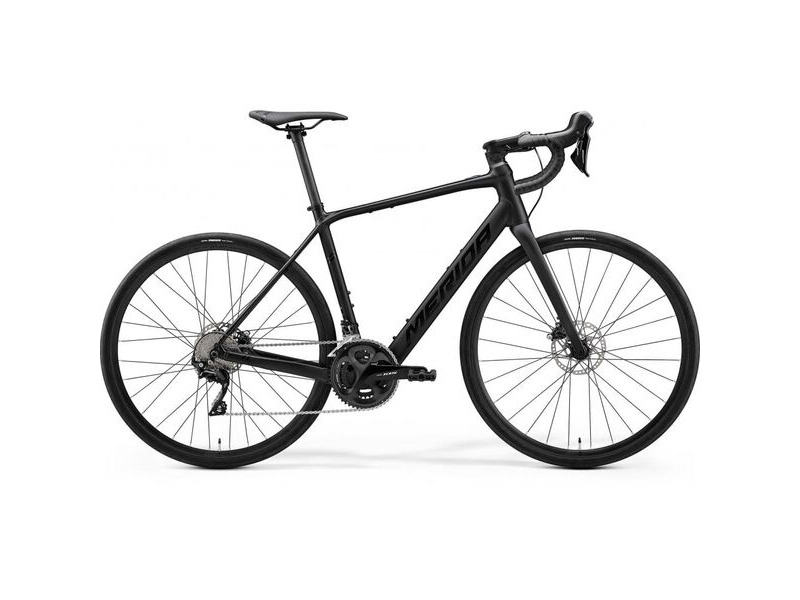

Merida eScultura 400 - Black Electric Urban Bike 2023
Pricing
Finance* from £207.00 per month*subject to status, minimum spend applies
Hover mouse for full example.
- How long will delivery take
- How much does delivery cost
- Price Match
eScultura 400 Electric Road Bike
Road eBike with MAHLE ebikemotion 40Nm rear hub motor, 2 x 11 Shimano 105 drivetrain and carbon fork. In silhouette you would have no idea it was an eBike!
The silhouette of the bike would not give away the fact the eScultura benefits from a permanent tail wind. Cheating? Not when you're having this much fun. The eScultura 400 brings all the benefits of a pedal-assist motor to a serious road bike, delivering a way to keep up with the pack on the hills without a heavy, draggy feel when you're pedalling above the assistance limit. Shimano's benchmark 105 groupset and hydraulic disc brakes to deliver a ride that's as sporty as a regular bike. MAHLE's ebikemotion system uses a 40Nm rear hub motor powered by a fully integrated 250Wh battery hidden in the downtube. The low system weight combined with a carbon fork and sophisticated aluminium frame means the bike also feels lively even without power assistance. There is almost no drag at all from the motor when it is not engaged. The system has an iWoc button for controlling support levels and a sophisticated app provides an opportunity to adjust the riding feel as well as offering post-ride analysis features. The frame has mounts for mudguards and rack and a neat hidden kickstand mount. Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit nice and neat.
Bike Specification
FRAME
Lite - Hydroformed 6066 triple butted aluminium, integrated battery, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards. Max 27.5" x 47c
MOTOR - Mahle X35+ Hub motor; 40Nm
BATTERY - MAHLE B1-D; 250Wh
BATTERY CAPACITY - 250Wh
EBIKE DISPLAY - Colour coded iWoc power button
CHARGER - Mahle charger-C; 2A
POWER BUTTON - MAHLE iWoc button
MODE SWITCH - MAHLE iWoc button
FORK - Mission CX CF3; carbon. Max. tyre size: 700 x 42c
GEARS - 22
SHIFTERS - Shimano 105
FRONT DERAILLEUR - Shimano 105
REAR DERAILLEUR - Shimano 105; GS
BOTTOM BRACKET - Shimano BSA
CHAIN - KMC e11s
CHAINSET - Shimano 105; 50-34 tooth chainset with 170mm - XS/S/SM/ML, 175mm - L/XL length crank
CASSETTE - Shimano 105; 11-32 teeth; 11 speed
BRAKE LEVER - Shimano 105
FRONT BRAKE - Shimano 105 hydraulic disc brake caliper with Shimano RT64 160mm rotor
REAR BRAKE - Shimano 105; 2 piston hydraulic disc brake caliper with Shimano RT66; 160 mm rotor
GRIP - Merida Expert
HANDLEBAR - Merida Expert CW; aluminium; Width: 400mm (XS/S), 420mm (M/L), 440mm (XL)
STEM - Merida Expert IR; aluminium; 31.8mm diameter; 5 degree rise. Stem length: 80mm (XXS/XS), 90mm (S),
100mm (SM/ML), 110mm (L/XL)
HEAD SET - VP-MH-P16
SADDLE - Merida Comp SL with V-mount
SEAT POST - Merida Expert CC; carbon; 30.9mm diameter; in-line
WHEEL SIZE - 700c
RIMS - Merida Expert SL; 17mm inner rim width; 22mm depth; aluminium; Tubeless ready (tubeless tape and valves not included)
SPOKES - Black stainless
FRONT HUB - VP CLK170F; 100x12mm; 28 spokes; Center lock
REAR HUB - Mahle X35+ Hub motor; 40Nm
FRONT TYRE - Maxxis Pursuer 700 x 32c; Kevlar bead, folding
REAR TYRE - Maxxis Pursuer 700 x 32c; Kevlar bead, folding
COLOUR - Black
SEASON - 2023
FRONT LIGHT - CG-119PG front light
REAR LIGHT - CG-404RG rear light
Specifications are subject to change without notice.

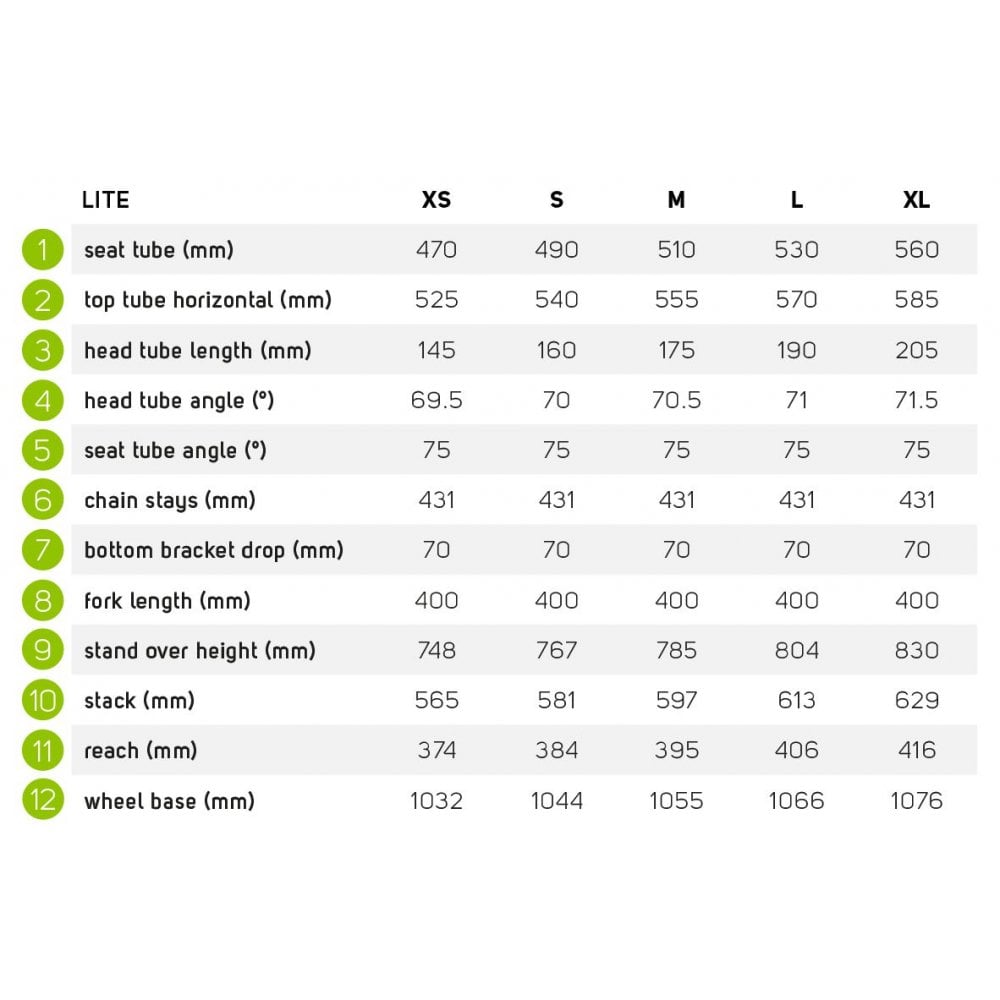

Geometry
| Model Year | 2023 |
|---|---|
| Options | Xs (Allow 3-6 Days For Delivery) Black Available S Low Stock (Allow 3-6 Days For Delivery) Black Available M Low Stock (Allow 3-6 Days For Delivery) Black Available L Low Stock (Allow 3-6 Days For Delivery) Black Available XL (Allow 3-6 Days For Delivery) Black Available |
| Wheel Size | 700c |
