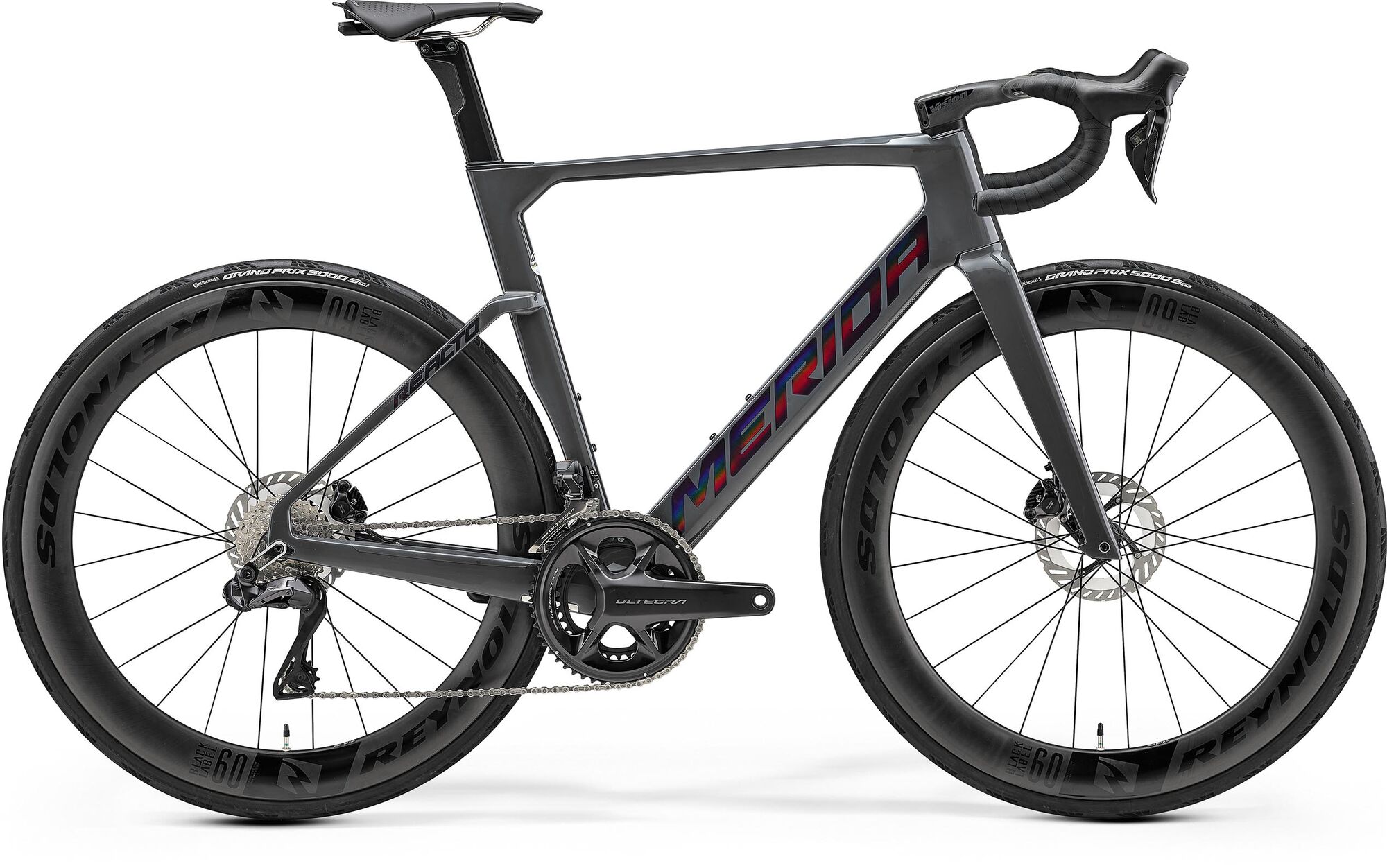

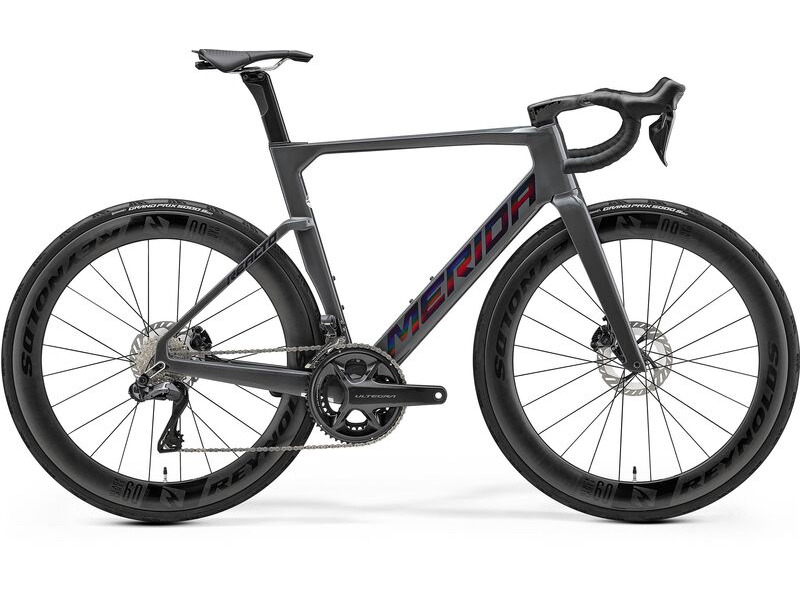

Merida Reacto 9000 2025

Highlights:
- Superlight CF5 pro level carbon frameset
- Shimano Ultegra 2 x 12 Di2 transmission
- Reynolds BL60 aero carbon wheelset with Continental GP5000S TR 28c tyres
- Vision Metron integrated carbon cockpit
- Merida S-Flex seat post
- Disc Cooler technology
- Shimano Ultegra Di2 equipped super lightweight CF5 framed carbon aero bike complete with Reynolds BL60 carbon wheelset and fully integrated Vision Metron carbon cockpit.

The Merida Reacto has always been a class leading aero bike, combining state of the art aerodynamics with rider comfort. The 4th generation model is more slippery and beautiful than ever, incorporating wider tyres, much neater cockpit cable integration and a series of incremental improvements to boost performance. In the world of Pro-Tour racing no area can be ignored. Computational Fluid Dynamics (CFD) calculations were used to model performance in a virtual wind tunnel, guiding the changes which offered the most aerodynamic benefit: Prototypes were wind tunnel tested following the German TOUR magazine standard, including the 'moving leg dummy' test. The Reacto CF5 needs just 209 watts effort for 45 km/h speed, 1 watt faster than its predecessor so it's in the leading group of aero road bikes ever tested by TOUR magazine. Small details such as integrating the front disc cooler behind the fork and the rear disc caliper in the rear triangle and creating new bolt through axles with the thread integrated into the fork dropout minimise drag and improve aerodynamic performance. A myriad of small improvements over-compensate for the aerodynamic compromises made to give the Reacto bigger tyres, resulting in the perfect package of comfort, aerodynamic, lightweight and style. A long string of test wins, perfect scores and awards confirm the successful evolution of the race-proven DNA of the previous model with the latest trends and technologies. Cycling Weekly described it as 'without doubt one of the most complete bikes available on the market', Cyclingnews 'an utterly brilliant and faultless machine' and Cycling Plus were 'hugely impressed'. All Reacto come with powerful hydraulic disc brakes. Calipers are mounted on the chainstay for better dissipation of braking forces using the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.

Frame
CF5 IV - carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 142 x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Max tyre size - 30c

Fork
Reacto CF5 IV Disc; full carbon, tapered steerer. Max tyre size: 700 x 30c - Disc cooler technology

Gears
24

Shifters
Shimano Ultegra Di2

Front Derailleur
Shimano Ultegra Di2; FD-R8150

Rear Derailleur
Shimano Ultegra Di2; RD-R8150

Bottom Bracket
SM-BB72-41B, Pressfit 86.5

Chain
Shimano CN-M8100-12

Chainset
Shimano Ultegra; 52-36 tooth chainset ; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)

Cassette
Shimano CS-R8101; 11-30 teeth; 12 speed

Brake Lever
Shimano Ultegra

Front Brake
Shimano Ultegra; Hydraulic disc brake caliper with Shimano CL800; 160mm rotor

Rear Brake
Shimano Ultegra; Hydraulic disc brake caliper with Shimano CL800; 160mm rotor

Grip
Merida Expert

Handlebar
Vision Metron 5D ACR EVO; carbon; 380mm (XXS-XS-S); 400mm (M-L-XL)

Stem
Vision Metron 5D ACR EVO; carbon - Length - 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL)

Head Set
FSA ACR 3MM THINNER NECK

Saddle
Scratch M5 with V-mount adapter; includes Merida minitool

Seat Post
Merida Team CW; Aero shape; 15mm layback; Carbon

Wheel Size
700c

Rims
Part of wheelset - Reynolds BL60 Expert DB, 21mm inner rim width; 41mm rim depth; carbon; Tubeless ready (tubeless tape and valves included)

Spokes
Part of wheelset

Front Hub
Part of wheelset - Reynolds BL60 Expert DB, 100 x 12mm; Centerlock;

Rear Hub
Part of wheelset - Reynolds BL60 Expert DB, 142 x 12mm; Centerlock; Shimano HG

Front Tyre
Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready

Rear Tyre
Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready

Colour
Dark Grey/Purple

Season
2025
