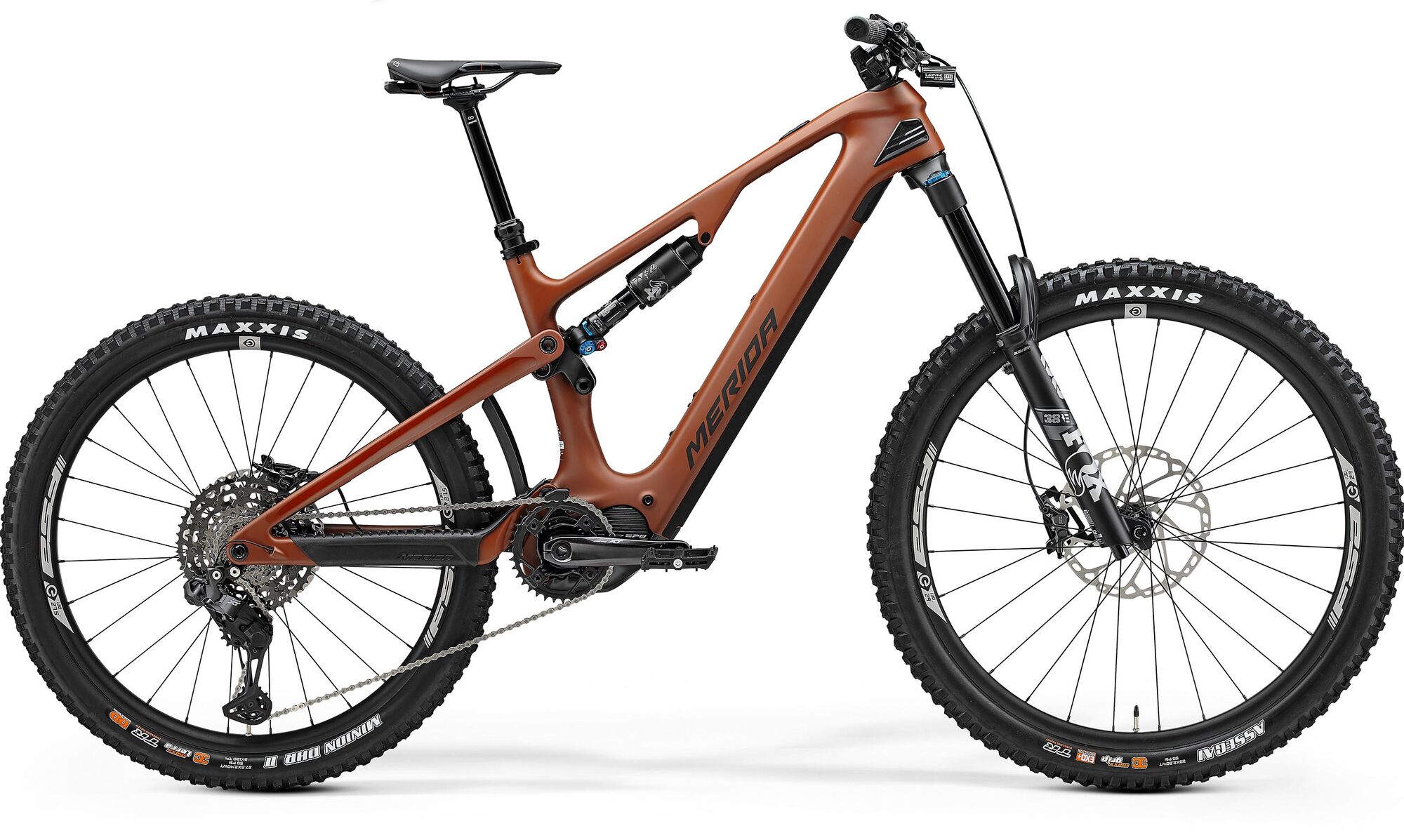

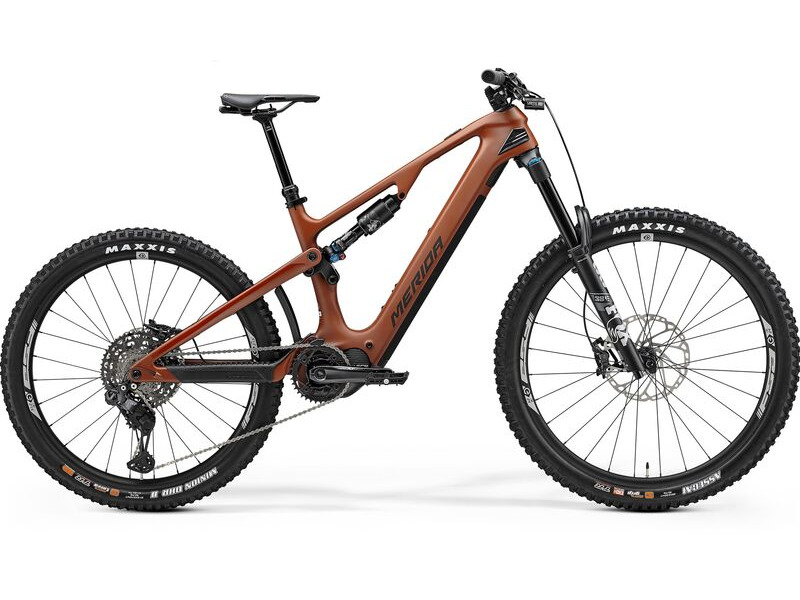

Merida e0ne Sixty 8000 Ebike 2025

- Lightweight full carbon fibre CF4 frame with 174 mm rear wheel travel
- Shimano EP801 85Nm motor with internal 600 Wh battery
- Fox 38 Performance fork with 170 mm travel and updated Float X2 Performance rear shock
- Highly durable Shimano XT Linkglide e-bike drivetrain
- Merida tubeless-ready wheelset
- Mixed wheel size as standard with option to full 29"

Our high level carbon frame is paired with the powerful, lightweight Shimano 85Nm EP801 motor and an integrated 600 Wh battery to minimise weight. Componentry includes a Fox 38 Performance fork, Fox Float X2 Performance shock, Shimano XT Linkglide drivetrain, Maxxis tyres and a tubeless ready wheelset.
Lightweight or full power? How about both? The new eOne-Sixty CF pairs an enduro-ready lightweight full carbon chassis with a full-support motor and a 600 Wh battery. A 360 Wh range extender is available separately so you don't have to choose between precise, playful handling, decent range or support that'll get you up the trickiest technical sections. With 170 mm travel at the front and 174 mm at the rear, it's perfectly at home on a race track or hitting the trails on repeat. The award winning FAST kinematic suspension and Agilometer sizing of our regular One-Sixty enduro complement our proven e-bike heritage. Our low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Our flip chip design enables you to run with mixed size 29" front and 27.5" rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails. Thanks to our 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.


Frame
Carbon III - carbon main frame and rear triangle internal battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"

Motor
Shimano EP801; 85Nm

Battery
Trendpower TPS-C15-58SD; 600Wh integrated

Battery Capacity
600Wh

eBike Display
Shimano SC-EM800

Charger
Trendpower EU Smart Charger; 4A

Mode Switch
Shimano SW-EM800-L

Shock
FOX Factory Float X2; 2 Pos Lever

Fork
FOX 38 Performance Elite eMTB+; Air; 170mm travel; Tapered; 44mm fork offset; 29x2.6" max WHS

Gears
11 Speed

Shifters
Shimano SL-MT500-IL dropper lever with Shimano XT Di2 M8150-11 shifter

Rear Derailleur
Shimano XT Di2 RDM8150 LinkGlide 11

Bottom Bracket
Part of Shimano Steps motor

Chain
Shimano LG500

Chainset
FSA 1x Steel chainring; 36 teeth with Shimano FC-E8150 crank; 165mm for all sizes; with Merida chain guide

Cassette
Shimano LG700; 11-50 teeth; 11 speed

Brake Lever
Shimano XT

Front Brake
Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT66 220mm rotor

Rear Brake
Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT66 203mm rotor

Grip
Merida Expert EC

Handlebar
Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise

Stem
Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes

Head Set
Acros ICR Merida integrated neck with Blocklock

Pedal
VP VP-532

Saddle
Proxim Nembo Steel; V-mount adapter; including Merida minitool

Seat Post
eMerida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel

Rims
Part of wheelset - FSA E-MTB i30; 30mm inner rim width; carbon; Tubeless ready (tubeless tape and valves included)

Spokes
Part of wheelset

Front Hub
Part of wheelset - FSA E-MTB i30 Alloy; 110x15mm; 6-Bolt

Rear Hub
Part of wheelset - FSA E-MTB i30 Alloy; 148x12mm; 6-Bolt; Shimano HG with Merida Expert TR; including removeable lever, 6/4mm allen key

Front Tyre
Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR EXO+ 3C MaxxGrip

Rear Tyre
Maxxis Minion DHR II; 27.5" x 2.4"; Kevlar bead, folding; 3C DD TR MaxxTerra

Colour
Silk Brown/Black

Season
2025

Front Light
Lezyne E-BIKE POWER STVZO E115,

Rear Light
USB rear Light CG-214RG
